处理器 | Intel Atom x5-E8000 (4 x 1.04 GHz, 2MB L2 cache, 5W) |
内存 | Onboard DDR3L memory support for up to 4 GByte at 1600MT/s |
产品特点

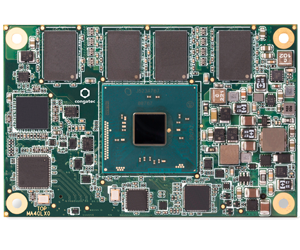

COME Mini Type10模块
第四代 Intel 凌动处理器家族
高清Intel显示
产品规格 | COM Express Mini |
处理器 | Intel Atom x5-E8000 (4 x 1.04 GHz, 2MB L2 cache, 5W) |
内存 | Onboard DDR3L memory support for up to 4 GByte at 1600MT/s |
网络 | Intel I211 Gigabit Ethernet controller |
输入/输出接口 | 3 x PCIe x1 lanes with 5 Gb/s |
图像 | Intel HD Graphics Gen 8 |
康佳特板载控制器 | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing |
嵌入式BIOS | OEM Logo |
电源管理 | ACPI 5 .0 compliant, Smart Battery Management |
操作系统支持 | Microsoft Windows 10 |
湿度 | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
尺寸 | 55 x 84 mm (2.17" x 3.31") |
